LED Down light(ACM260)
Information of LED Down light (ACM260)
| Operating Voltage: | 170-260V |
| Material: | Plastic |
| Size: | 2.5/3/4/6/8 inch |
| Ballast: | LED driver |
| Light Source: | LED |
| Wattage: | 5W/9W/12W/18W/24W |
| Color(Finish): | White/Black/Silver |
| Description: | The product adopts the new PC material injection molding, meets the environmental protection requirement, the back adopts the unique mirror light design. Product light efficiency 85Lm /W, 100Lm /W, 120Lm /W for customers to choose, can meet the latest European ERP energy efficiency certification standards.Product waterproof grade can be IP54 or IP20.It will meet the needs of different customers and occasions;The following functions can be added according to customer requirements: microwave induction function, dialing switch color temperature function (3000K,4000K,6000K), dimming function, emergency function |
| Lead Time: | 45 DAYS |
| Terms: | FOB NINGBO |
| Country of Origin: | China |
| Standard: | TUV CE CB ERP ROHS |
| Mark: |  |
| Category: | LED Lighting Fixtures > LED Down light |
Packing information of LED Down light (ACM260)
| Total Wattage | Length | Quantity | Carton Size | Gross Weight | Net Weight |
| 12W | 145MM | 60 PCS/CTN | 46*36*31.5 | 8KGS | 7KGS |
| 18W | 170MM | 60 PCS/CTN | 53*38*36 | 8.5KGS | 7.5KGS |
| 24W | 220MM | 40 PCS/CTN | 46*38*46 | 10KGS | 9KGS |
| 5W | 95MM | 100 PCS/CTN | 51*36*21.5 | 6.6KGS | 5.6KGS |
| 9W | 120MM | 100 PCS/CTN | 62*36*26 | 8.5KGS | 7.5KGS |

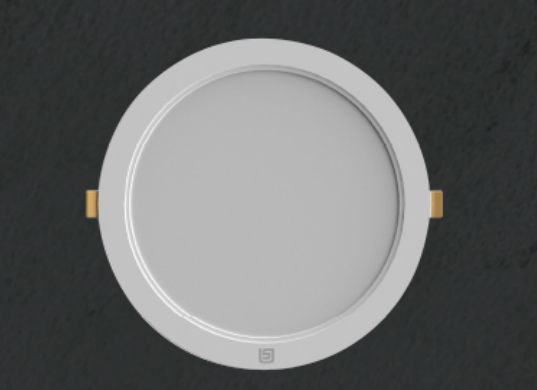

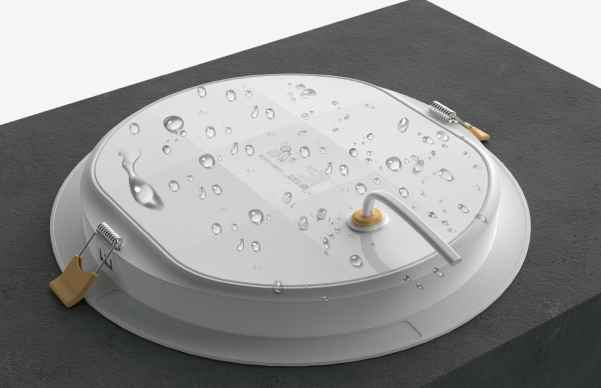

Pictures of LED Down light (ACM260)
Description of LED Down light:
Our LED DOWN LIGHT using new PC injection molding, in line with the requirements of environmental protection,
the back of a unique mirror light design, appearance level is very high, enhance the recognition of products, improve the user purchase rate.
The product is designed for the bottom light, the whole aluminum substrate increases the heat dissipation area of the product, and the LED solder joint temperature is controlled in 70-85 degrees.
Product waterproof grade IP54, IP20 can meet the needs of different customers and occasions.
